Nokia Lumia 535 Battery Connector Problem Jumper Hardware Solution 2016

Nokia Lumia 535 Power Problem Solution, Battery Connector Ways, Jumper
Nokia Lumia 535 Battery Connector Ways Jumper Solution – This time we will discuss about the damage to the battery connector Nokia 535 rarely the case, but here we will try to discuss it with the simple. Damage to the battery connector Microsoft Nokia 535  could be in the causes for battery connector dislodged from its place dropped or misuse or corrosion due to exposure to water. Here are the simple steps to solve the problems on the battery connector.

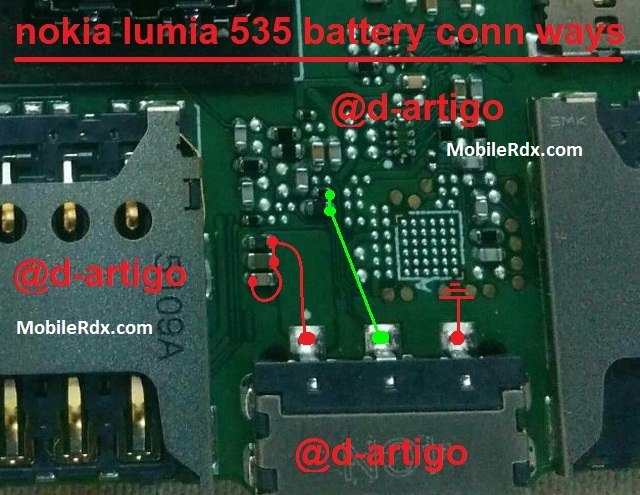

The first step that must be done is to check the lines and resistors are bypassed as shown below if there is a faulty resistor dislodged battery to replace it.

The second step checks the path as shown below if there is a path-breaking try to make jumpers carefully and thoroughly, because a small resistor is easily detached and lead to a break point.

The very first thing that you need to do is to check battery voltage at its terminals in order to verify whether the problem is with the battery or with anything else. (Battery voltage should be at least 3.8V).
If the battery voltage is lower than 3.8V or is not showing charge then it means you need to change your battery in first place and check.

Now check battery connectors physically for any physical or water damage. In case it is water damage than clean the battery contacts. Besides that, also re-solder these battery contacts and make jumpers.

In case all of the above method doesn’t resolve your problem then check the entire board for any traces of water damage gently heat or re-solder if needed.

Nokia Lumia 535 Battery Connecter Ways,Bsi Line Jumper,Set Is dead Problem,Power Problem Solution,Battery Connecter Jumper.
